ROW/SAIL DINK, 7'6" X 4', 63 POUNDS
Moby Dink was one of my first projects.
I built and used the prototype for a few years before
selling it to a man who uses it to tend his farm pond.
If I were to do this one again I wouldn't change the hull
at all but would try the small lateen that I put on
Tween. Indeed, Tween is pretty much a redesign
of Moby with the idea of giving it a V entry on the bow
for better action in chop, and the lateen sail for simpler

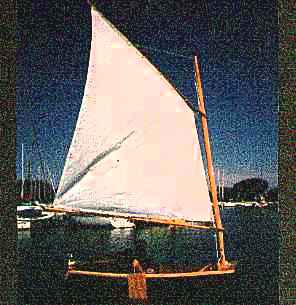

set up. But the gaff sail was instructive. The photo shown
above is of Dean Raffaelli's Moby up in Chicago. One thing
I noticed was that the gaff takes a while to set up because
it has so many lines. Perhaps it is not a good choice
for a trailer or cartopper because of that reason. But
the payoff is that all those lines give you great control
of the sail shape. You can tweak the thing in any direction
to adjust for any wind condition. Also I think I became
convinced that the mast stiffness of a gaffer is critical
for sail control in a stiff wind. If the mast bends aft,
as it will in strong winds, the gaff sags off, the sails
leach bellies out and she is no longer close winded. But
if the mast is stout and the skipper can play all the
lines properly, the gaff sail can be quite effective.
Here are the Moby words from the catalog:
Moby Dink was designed to be a very
easy, inexpensive beginner's project and, at the same
time, to be a dinghy for a rich man's yacht. Fitted with
a trolling motor, she would make an excellent pond fishing
She is 7'6" long, 3'10" wide,
and weighs 63 pounds empty. She'll easily float 370 pounds.
Moby Dink's construction is of the old
fashioned nailed-together type, and anyone who has built
a shoe box in high school shop can handle it. All panel
shapes and bevels are defined in the drawings. The sides
are cut to shape, bent around the center frame, and the
end transoms are nailed in place. The wales and chines
are installed and the bottom is fitted and trimmed like
a pie crust and nailed in place. There is no lofting required
and no construction jig need be built. Two sheets of 1/4"
plywood will make all her plywood parts, including the
sail rig parts. A pattern for sewing your own sail is
also given on the plans. The prototype required 60 hours
labor and $160 to build including building the sail rig.
The sail rig absorbs about half the cost and labor of
almost any sailing project, large or small.
Moby Dink's sail rig is a genuine gaff,
stepped up front out of the way. Her sail area is modest
and she is handy in a good breeze. (Keep her in protected
water, please.) She will tack in one second. Moby has
a pivoting leeboard and rudder which will allow sailing
her right up to a beach. Serious yachters might also use
her as a tender. The 6-1/2 foot oars are detailed on the
