Frolic2
Plans - $37.50



Frolic2

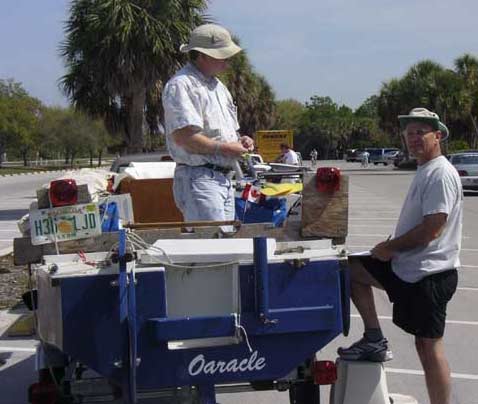

Steve Isaacs (AKA Chief) checks gear on Gary Blankenship's Frolic2 "Oaracle" just prior to the 2006 Watertribe Everglades Challenge

FROLIC2, CUDDY MULTI SKIFF, 20' X 5', 400 POUNDS EMPTY

The photo shows the prototype Frolic2 built by Larry Martin of Coos Bay, Oregon. Larry built the boat quite quickly this past winter including sewing the sail to the instructions given in the plans. He reported sailing it for the first time on a ripping day with an occasional 2' wave. I always advise testing a new boat in mild weather, especially a new design, but Larry got away with it. Looking at his photos, the neat work, and simple efficient rigging suggests to me that Larry has been sailing small boats a long time.

frolic

Frolic2 has a small cabin, probably only for one to sleep in because the multichines that make the boat good in rough water also rob you of floor space. To say it another way, the nice big floor space of a flat bottomed sharpie is what pounds in rough water and makes you uncomfortable. But Frolic2 has a 6' long cockpit so someone could sleep there too. There is bench seating. The cabin top has a slot top down the center and you can stroll right through the cabin standing upright in good weather and out the front bulkhead to the beach. The mast is offset to one side so you will need not have to step around it. Phil Bolger showed us how to do this about 15 years ago and it works. But Larry went conventional with his boat, mounting the mast on centerline and decking in the front of the cabin. On a slot top cabin you use a simple snap on tarp to cover the slot in rain or cold or bugs.

frolic

Frolic2 was designed for rough water, long and lean, especially in the bow, and with multiple chines. She's really a takeoff of my Toto canoe in shape. Larry omitted the motor well you see in the lines, and the oarlocks too (The wind must blow just right all the time in Oregon?) but I intended this to be a multi skiff sort of boat with rowing and motoring abilities. You can't row a boat of this size in any wind or waves but in a calm you can travel far if you have patience. I didn't fool around with a gadget motor mount - I put the motor well right in the middle and offset the rudder instead of the other way around. This worked out very well on the high powered Petesboat. We'll see how it goes on a narrow boat because the second prototype is getting the blueprint well as you see in the photo below of the Colorado Frolic2 still being built. You need little power on a boat like this, 2 or 3 hp is more than enough.

frolic2

The lug rig is for quick easy stowing, rowing, and towing. (The blueprint sail is actually the same size and shape as that of a Bolger Windsprint, a boat which weighs maybe a third as much as Frolic2 and is much narrower. But I think the Windsprint might be over sparred for its size and weight.) Larry reports the rig is about right for the boat, sailing fine with a reef in and three adults on a windy day. The lug sail can be closer winded reefed than when full, perhaps because the sail is then shorter and the yard better controlled (less sail twist). For that matter a sharpie sprit sail the same size as the lug might be smarter in rough water conditions if you can live with the long mast. Switching rigs won't be hard. The mast can be relocated almost anywhere in the slot top without altering the hull to any degree. You just need extra partner and step fittings.

Frolic2

Construction is with taped seams from eleven sheets of 1/4" plywood and two sheets of 1/2" plywood.
