Splinter - SUP Kit

Kit (?) for 12'-6" model - $770
Kit (?) for 14' model - $770
Kit (?) for 16' model - $770
Epoxy + Kit (?) - $330
What's in the kits? NOTE: shipping will be calculated after order has been placed

Splinter

Splinter is a high performance expedition SUP. It's a touring board that can also win races. It's a great board for someone new to SUPs, but it's also a sleek performer.

We are now offering complete CNC cut plywood kits for building one of these amazing SUP's. Why are they amazing? To start with, they are made from Paulownia plywood, a super light, rot resistant, plantation grown, renewable wood that we think is going to revolutionize boat building.

Speed~ We have taken a flatwater racing SUP hull shape and morphed it with the ability to carry gear internally in watertight compartments. Its wave piercing bow shape allows it to cut into waves efficiently. Its light weight kit construction allows it to be built lighter than most Carbon Fiber race boards. Its design allows the builder to fine tune the rocker profile to their exact weight and target conditions, where as a store bought board will always be a compromise.

Comfort~ Each board comes in multiple widths. You can choose a wider board that will be a comfy cruiser or a narrower board that is faster and will push you into a new level of performance. Their light weight will be an asset each time you carry the board down to the water.

Expeditions~ The Splinter's hollow construction has dry hatches and watertight compartments that will allow you to pack for multiday island hopping adventures. The internal storage is also a huge asset when out for a day paddle as a convinient place to stash some snacks, water, an extra layer, or even a book to read when you get to that distant shore.

Construction~ Easy to build stitch and glue construction using Paulownia Plywood which is one of the most sustanable woods in the world.

Three Models to choose from:

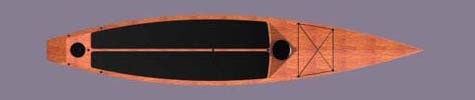

Splinter - 12-6

  • Overall length - 12', 6"
  • Weight - 20-23 lbs.
  • Available in - 30" or 28" widths
  • Payload - Person + gear (up to 260 lbs)

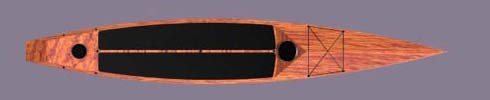

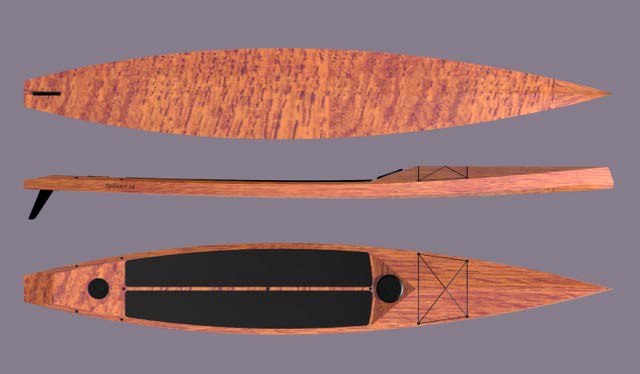

Splinter - 14

  • Overall length - 14'
  • Weight - 22-25 lbs.
  • Available in - 30", 28" or 26" widths
  • Payload - Person + gear (up to 275 lbs)

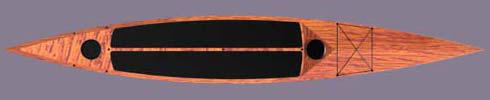

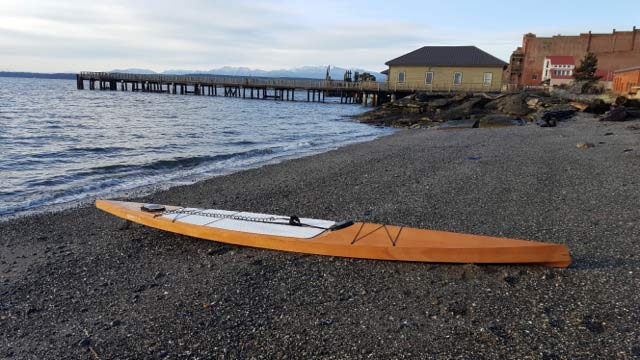

Splinter - 16

  • Overall length - 16'
  • Weight - 24-28 lbs.
  • Available in - 28" widths
  • Payload - Person + gear (up to 300 lbs)

What's in the Kits?

The boat kits:

  • precut Paulownia plywood pieces
  • Gore-Tex vent
  • fin box and fin
  • leash cups
  • builders manual

The epoxy kits:

  • epoxy
  • fiberglass cloth
  • gloves
  • mix cups
  • brushes
  • wood flour
  • stitching wire
  • mixing sticks
  • squeegies
  • waterproof hatches
  • EVA decking
